Samsung Galaxy S10 5G
Full specifications. Reported SAR. The context behind your connection.
Display6.7 inches
ChipsetExynos 9820 Octa (8 nm) - EMEAQualcomm SDM855 Snapdragon 855 (7 nm) - USA/LATAM, China
FCC identifierA3LSMG977U
RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.
The SAR overview.
Reported US test values · W/kg averaged over 1 g of tissue
Head SAR0.30 W/kg19% of US localized limit
Body SAR1.11 W/kg69% of US localized limit
Simultaneous head1.17 W/kg73% of US localized limit
Simultaneous body1.51 W/kg94% of US localized limit
0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average
Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →
Additional SAR values & source information
| Hotspot (US) | 1.59 W/kg |
|---|---|
| Product-specific use (US) | 0.38 W/kg |
| Head (EU, 10 g) | 0.26 W/kg |
| Body (EU, 10 g) | 1.55 W/kg |
| FCC ID | A3LSMG977U — FCC equipment search ↗ |
| Source | RF Safe original phone profile ↗ |
| Data note | Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed. |

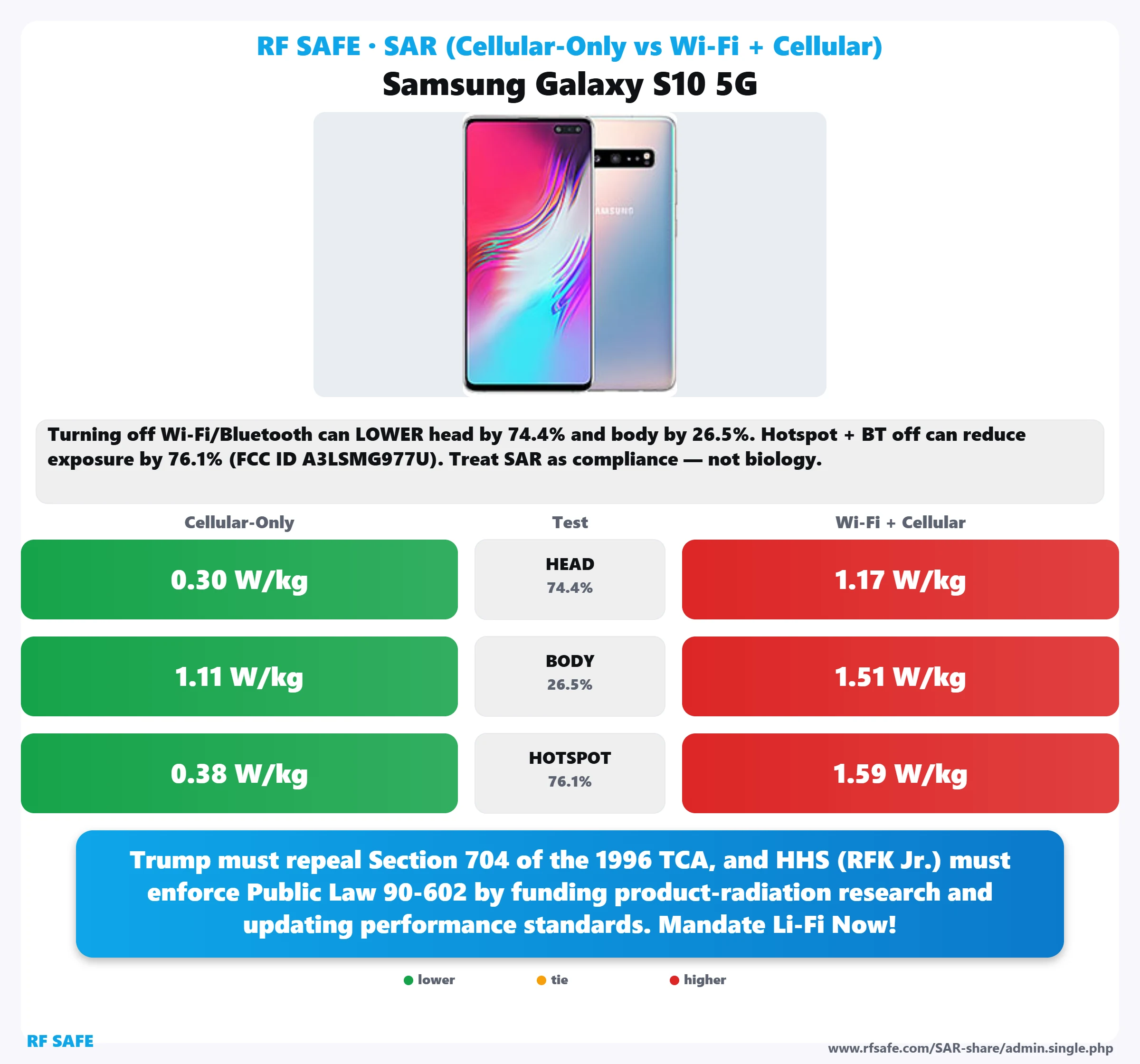

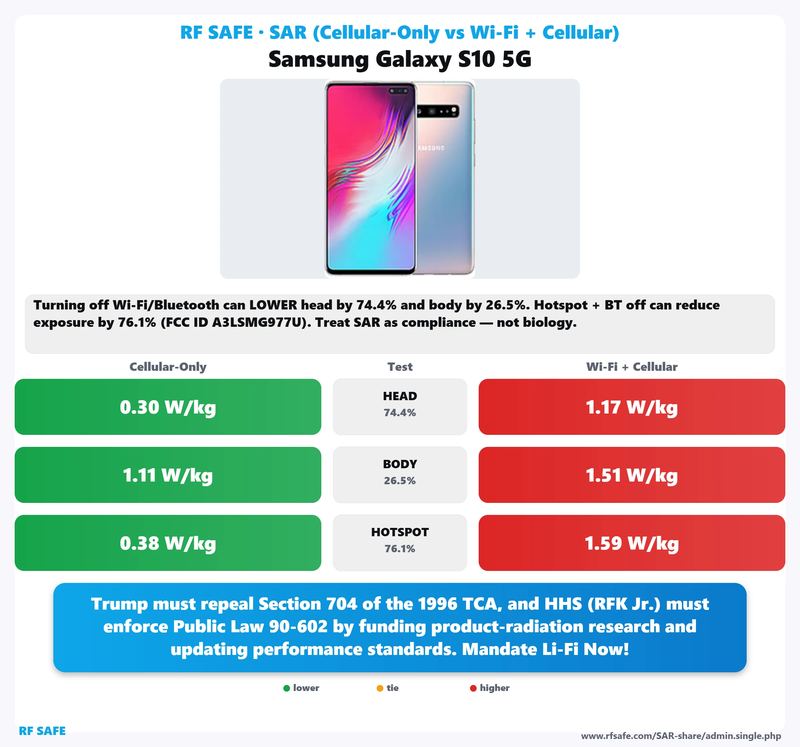

Your SAR comparison, at a glance.
Cellular-only and simultaneous-transmission values, side by side.
RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.

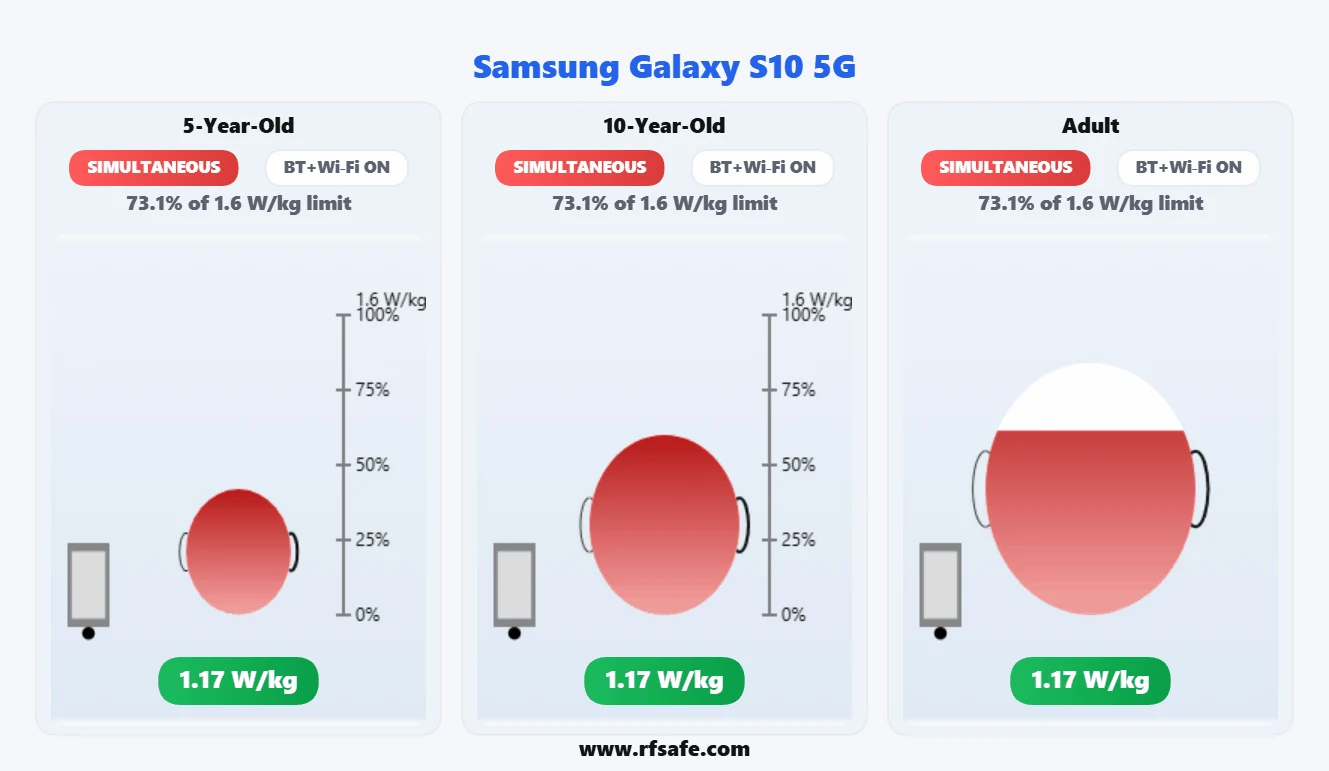

Two views. One clearer picture.
RF Safe reference illustrations for this phone.
Body exposure reference
Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.
Every specification, in one place.
Historical RF Safe reference data. Software, pricing, and availability may have changed.
General
| Phone | Samsung Galaxy S10 5G |
|---|---|
| Technology | GSM / CDMA / HSPA / EVDO / LTE |
| Announced | February 23, 2023 |
| Availability (source snapshot) | Coming soon. Exp. release 2019 |
| Price (historical source) | 0 |
Display
| Type | Dynamic AMOLED capacitive touchscreen, 16M colors |
|---|---|
| Size | 6.7 inches, 112.0 cm2 (~89.4% screen-to-body ratio) |
| Resolution | 1440 x 3040 pixels, 19:9 ratio (~502 ppi density) |
| Protection | Corning Gorilla Glass 6 |
| Features | Corning Gorilla Glass 6 - HDR10+- Always-on display |
Camera
| Main Camera | Quad Camera: 12 MP, f/1.5-2.4, 26mm (wide), 1/2.55", 1.4m, Dual Pixel PDAF, OIS 12 MP, f/2.4, 52mm (telephoto), 1/3.6", 1.0m, AF, OIS, 2x optical zoom 16 MP, f/2.2, 12mm (ultrawide) TOF camera |
|---|---|
| Main Features | LED flash, auto-HDR, panorama |
| Video | 2160p@60fps, 1080p@240fps, 720p@960fps, HDR, dual-video rec. |
| Selfie Camera | Dual Camera: 10 MP, f/1.9, 26mm (wide), Dual Pixel PDAF TOF camera |
| Selfie Camera Features | Dual video call, Auto-HDR |
| Selfie Camera Video | 2160p@30fps, 1080p@30fps |
Battery
| Charging | Fast battery charging 25W (USB Power Delivery 3.0) Fast wireless charging 15W Power bank/Reverse wireless charging 9W |
|---|
Hardware
| Operating system (source snapshot) | Android 9.0 (Pie); One UI |
|---|---|
| Chipset | Exynos 9820 Octa (8 nm) - EMEAQualcomm SDM855 Snapdragon 855 (7 nm) - USA/LATAM, China |
| CPU | Octa-core (2x2.73 GHz Mongoose M4 & 2x2.31 GHz Cortex-A75 & 4x1.95 GHz Cortex-A55) - EMEAOcta-core (1x2.84 GHz Kryo 485 & 3x2.41 GHz Kryo 485 & 4x1.78 GHz Kryo 485) - USA/LATAM, China |
| GPU | Mali-G76 MP12 - EMEA Adreno 640 - USA/LATAM, China |
| Internal Storage | 256 GB, 8 GB RAM |
| Card Slot | No |
| Sensors | Fingerprint (under display), accelerometer, gyro, proximity, compass, barometer, heart rate, SpO2 |
Connectivity
| Wi-fi | Wi-Fi 802.11 a/b/g/n/ac/ax, dual-band, Wi-Fi Direct, hotspot |
|---|---|
| Bluetooth | 5.0, A2DP, LE, aptX |
| USB | 3.1, Type-C 1.0 reversible connector |
| GPS | Yes, with A-GPS, GLONASS, BDS, GALILEO |
| NFC | Yes |
| Radio | FM radio (USA & Canada only) |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | Yes |
Design
| Type | Bar |
|---|---|
| Dimensions | 162.6 x 77.1 x 7.9 mm (6.40 x 3.04 x 0.31 in) |
| Weight | 198 g (6.98 oz) |
| Colors | Prism White |
| Build | Front/back glass (Gorilla Glass 6), aluminum frame |
Network
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (7CA) Cat20 2000/150 Mbps; 5G |
|---|---|
| SIM | Nano-SIM |
| 2G Network | GSM 850 / 900 / 1800 / 1900 |
| 3G Network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G Network | LTE |
