Samsung · PHONE PROFILE

Samsung Galaxy S10 Lite

Name: Samsung Galaxy S10 Lite
Brand: Samsung

Full specifications. Reported SAR. The context behind your connection.

Display6.7 inches

ChipsetQualcomm SM8150 Snapdragon 855 (7 nm)

FCC identifierA3LSMG770F

Compare this phone →Find a QuantaCase

RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.

The SAR overview.

Reported US test values · W/kg averaged over 1 g of tissue

Head SAR0.69 W/kg43% of US localized limit

Body SAR0.93 W/kg58% of US localized limit

Simultaneous head1.06 W/kg66% of US localized limit

Simultaneous body1.36 W/kg85% of US localized limit

0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average

Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →

Additional SAR values & source information

Hotspot (US)	1.58 W/kg
Product-specific use (US)	1.07 W/kg
Head (EU, 10 g)	0.49 W/kg
Body (EU, 10 g)	1.52 W/kg
FCC ID	A3LSMG770F — FCC equipment search ↗
Source	RF Safe original phone profile ↗
Data note	Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed.

Your SAR comparison, at a glance.

Cellular-only and simultaneous-transmission values, side by side.

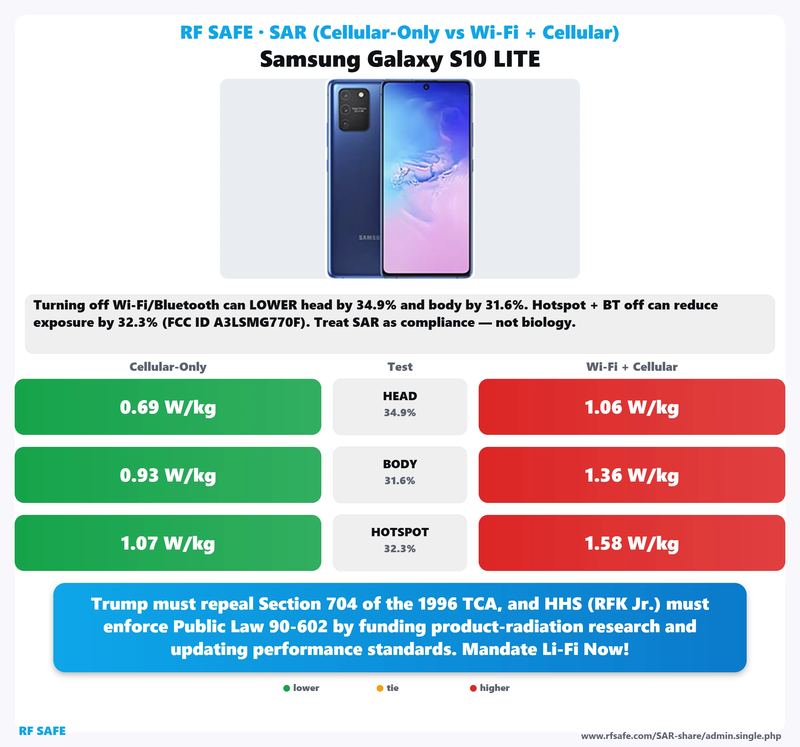

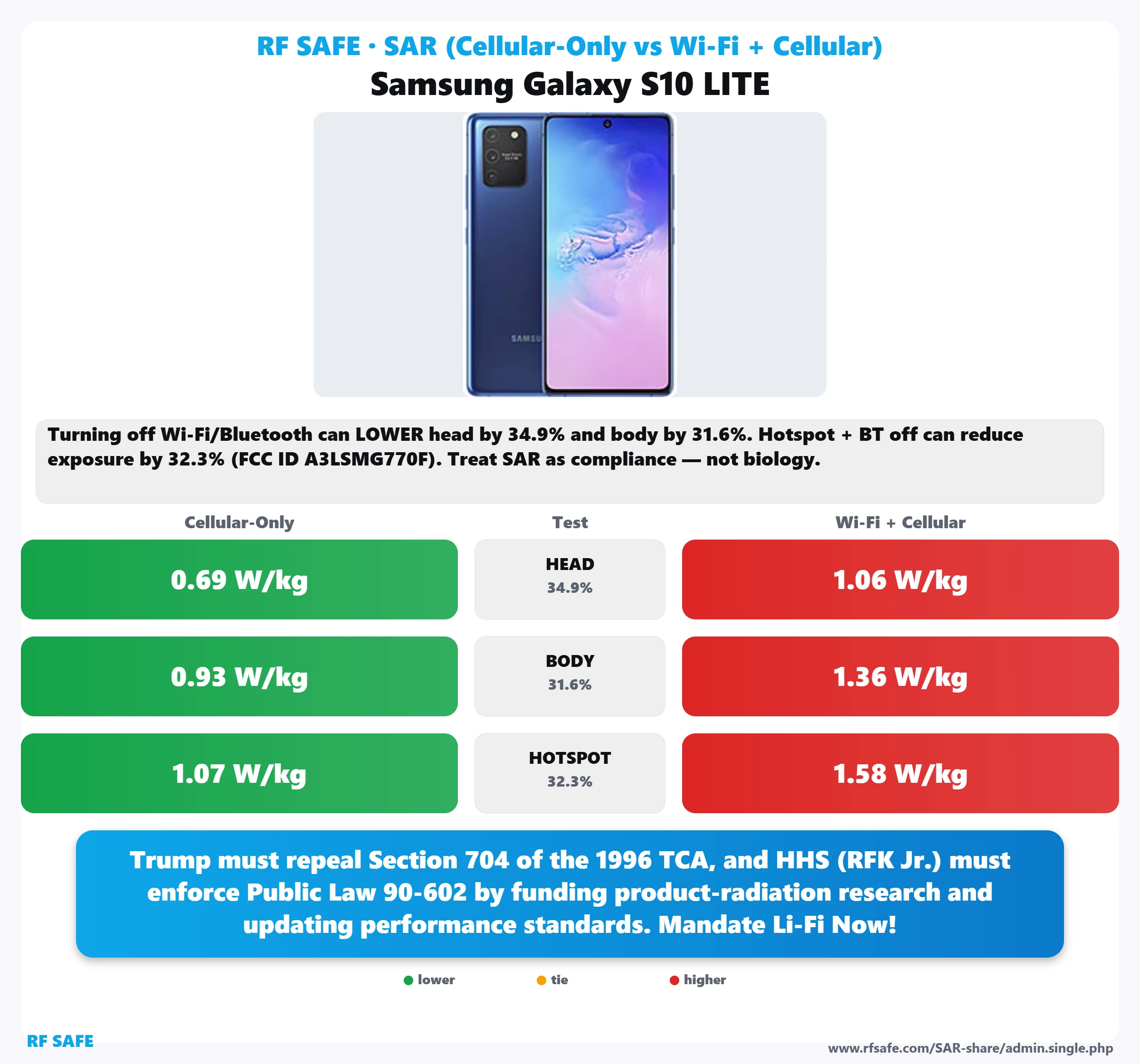

Samsung Galaxy S10 Lite SAR comparison chart showing cellular-only versus simultaneous Wi-Fi and cellular test values — RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.
Open full-size chart ↗Download web-size chart ↓

Two views. One clearer picture.

RF Safe reference illustrations for this phone.

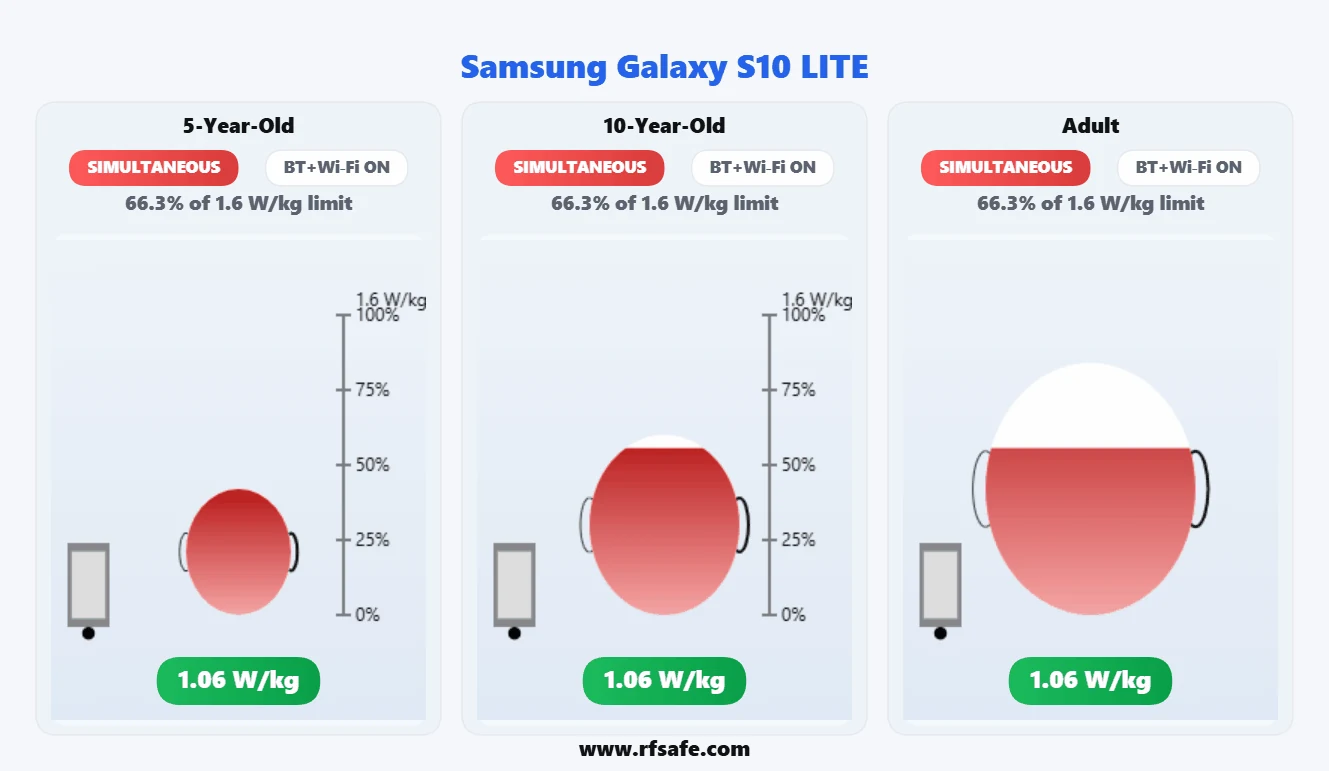

Head exposure reference

Samsung Galaxy S10 Lite head SAR reference illustration

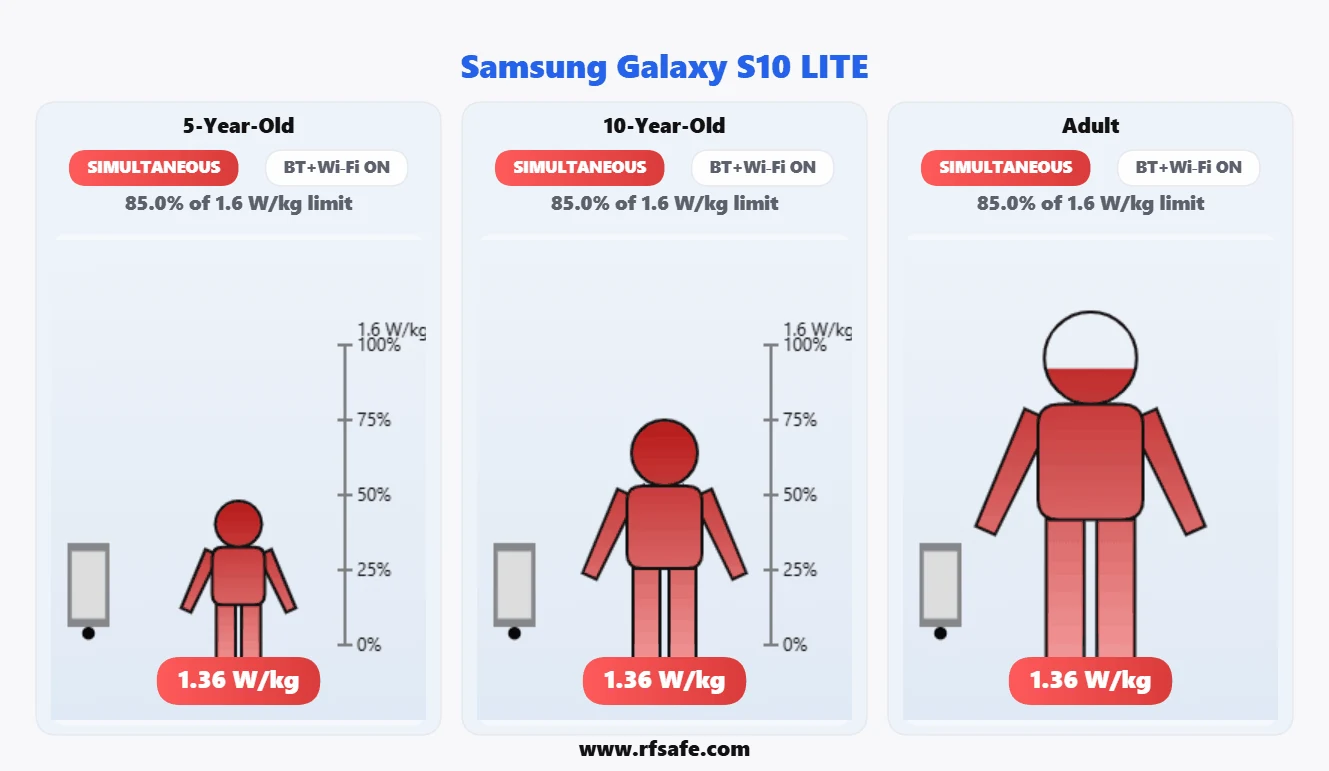

Body exposure reference

Samsung Galaxy S10 Lite body SAR reference illustration

Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.

Every specification, in one place.

Historical RF Safe reference data. Software, pricing, and availability may have changed.

General

Phone	Samsung Galaxy S10 LITE
Technology	GSM / HSPA / LTE
Announced	January 3, 2020
Availability (source snapshot)	Available
Price (historical source)	€ 600.17 / $ 559.95 / £ 518.08 / ₹ 39,999
Model Names	SM-G770F, SM-G770F/DS, SM-G770F/DSM

Display

Type	Super AMOLED Plus capacitive touchscreen, 16M colors
Size	6.7 inches, 107.8 cm2 (~87.8% screen-to-body ratio)
Resolution	1080 x 2400 pixels, 20:9 ratio (~394 ppi density)
Features	N/A
Display Test	Contrast ratio: Infinite (nominal)

Camera

Main Camera	Triple Camera: 48 MP, f/2.0, 26mm (wide), 1/2.0", 0.8m, PDAF, Super Steady OIS 12 MP, f/2.2, 12mm (ultrawide) 5 MP, f/2.4, 25mm (macro), 1/5.0", 1.12m
Main Features	LED flash, panorama, HDR
Video	2160p@30/60fps, 1080p@30/60/240fps; gyro-EIS
Selfie Camera	Single Camera: 32 MP, f/2.2, 25mm (wide), 1/2.8", 0.8m
Selfie Camera Features	HDR
Selfie Camera Video	1080p@30fps

Battery

Battery Test	Endurance rating 110h
Charging	Fast battery charging 45W

Hardware

Operating system (source snapshot)	Android 10.0; One UI 2
Chipset	Qualcomm SM8150 Snapdragon 855 (7 nm)
CPU	Octa-core (1x2.84 GHz Kryo 485 & 3x2.42 GHz Kryo 485 & 4x1.78 GHz Kryo 485)
GPU	Adreno 640
Performance	AnTuTu: 370751 (v7), 459497 (v8) GeekBench: 11151 (v4.4), 2732 (v5.1) GFXBench: 56fps (ES 3.1 onscreen)
Internal Storage	128GB 6GB RAM, 128GB 8GB RAM, 512GB 8GB RAM
Card Slot	microSDXC (uses shared SIM slot)
Sensors	Fingerprint (under display, optical), accelerometer, gyro, proximity, compass

Connectivity

Wi-fi	Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth	5.0, A2DP, LE
USB	2.0, Type-C 1.0 reversible connector
GPS	Yes, with A-GPS, GLONASS, GALILEO, BDS
NFC	Yes

Sound

Loudspeaker	Yes
3.5mm Jack	No

Design

Type	Bar
Dimensions	162.5 x 75.6 x 8.1 mm (6.40 x 2.98 x 0.32 in)
Weight	186 g (6.56 oz)
Colors	Prism White, Prism Black, Prism Blue

Network

Speed	HSPA 42.2/5.76 Mbps, LTE-A
SIM	Single SIM (Nano-SIM) or Dual SIM (Nano-SIM, dual stand-by)
2G Network	GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only)
3G Network	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G Network	LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 20(800), 26(850), 28(700), 38(2600), 40(2300), 41(2500), 66(1700/2100)
