Head exposure reference
Apple · PHONE PROFILE
Apple iPhone 8
Full specifications. Reported SAR. The context behind your connection.
Display4.7 inches
ChipsetApple A11 Bionic (10 nm)
FCC identifierBCG-E3159A
RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.
The SAR overview.
Reported US test values · W/kg averaged over 1 g of tissue
Head SAR1.14 W/kg71% of US localized limit
Body SAR1.08 W/kg68% of US localized limit
Simultaneous head1.51 W/kg94% of US localized limit
Simultaneous body1.56 W/kg98% of US localized limit
0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average
Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →
Additional SAR values & source information
| Hotspot (US) | 1.56 W/kg |
|---|---|
| Product-specific use (US) | 1.08 W/kg |
| Head (EU, 10 g) | 1.17 W/kg |
| Body (EU, 10 g) | — W/kg |
| FCC ID | BCG-E3159A — FCC equipment search ↗ |
| Source | RF Safe original phone profile ↗ |
| Data note | Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed. |

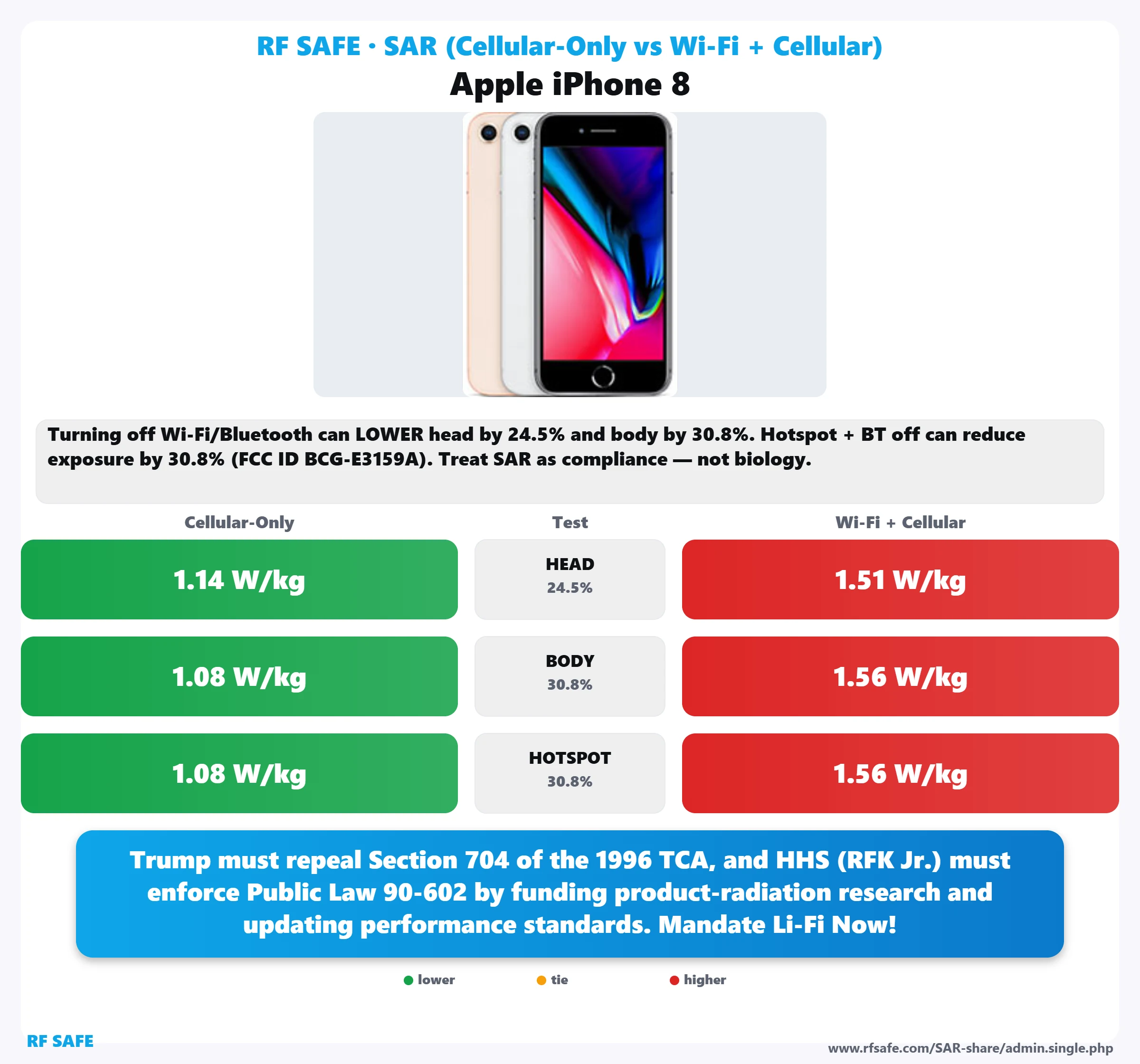

Your SAR comparison, at a glance.
Cellular-only and simultaneous-transmission values, side by side.
RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.

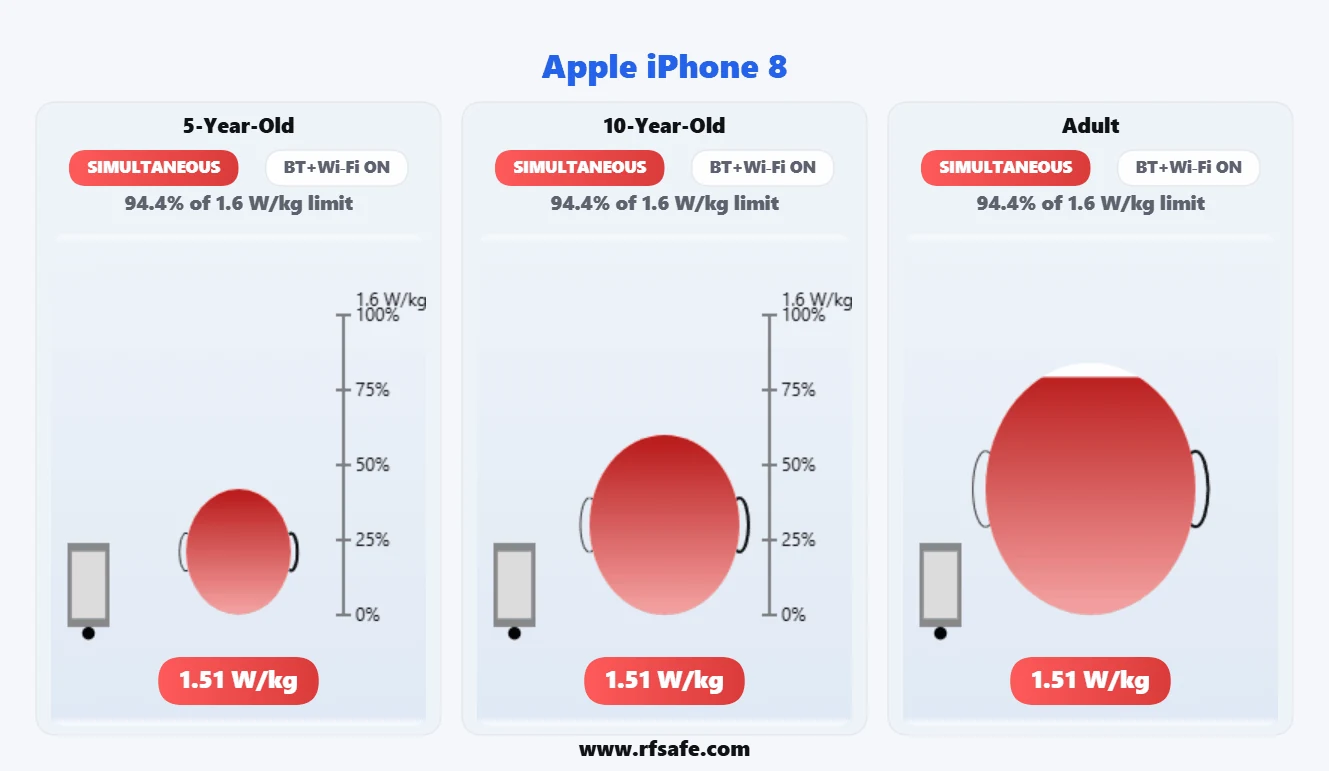

Two views. One clearer picture.
RF Safe reference illustrations for this phone.
Body exposure reference
Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.
Every specification, in one place.
Historical RF Safe reference data. Software, pricing, and availability may have changed.
General
| Phone | Apple iPhone 8 |
|---|---|
| Technology | GSM / HSPA / LTE |
| Announced | 2017-09-12 22:16:49 |
| Availability (source snapshot) | Available. Released 2017, September 22 |
| Price (historical source) | About 210 EUR |
| Model Names | A1863, A1905, A1906, A1907, iPhone10,1, iPhone10,4 |
Display
| Type | Retina IPS LCD, 625 nits (typ) |
|---|---|
| Size | 4.7 inches, 60.9 cm2 (~65.4% screen-to-body ratio) |
| Resolution | 750 x 1334 pixels, 16:9 ratio (~326 ppi density) |
| Protection | Ion-strengthened glass |
| Features | 3D Touch display & home button |
| Display Test | Contrast ratio: 1395:1 (nominal), 3.957 (sunlight) |
Camera
| Main Camera | Single Camera: 12 MP, f/1.8, 28mm (wide), PDAF, OIS |
|---|---|
| Main Features | Quad-LED dual-tone flash, HDR |
| Video | 4K@24/30/60fps, 1080p@30/60/120/240fps |
| Selfie Camera | Single Camera: 7 MP, f/2.2 |
| Selfie Camera Features | Face detection, HDR, panorama |
| Selfie Camera Video | 1080p@30fps |
Battery
| Type | Li-Ion 1821 mAh, non-removable (6.96 Wh) |
|---|---|
| Battery Test | Endurance rating 66h |
| Charging | 15W wired, PD2.0, 50% in 30 min (advertised) Wireless (Qi) |
Hardware
| Operating system (source snapshot) | iOS 11, up to iOS 16.3 |
|---|---|
| Chipset | Apple A11 Bionic (10 nm) |
| CPU | Hexa-core (2x Monsoon + 4x Mistral) |
| GPU | Apple GPU (three-core graphics) |
| Performance | AnTuTu: 237594 (v7) GeekBench: 10214 (v4.4) GFXBench: 20fps (ES 3.1 onscreen) |
| Internal Storage | 64GB 2GB RAM, 128GB 2GB RAM, 256GB 2GB RAM NVMe |
| Card Slot | No |
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer |
Connectivity
| Wi-fi | Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot |
|---|---|
| Bluetooth | 5.0, A2DP, LE |
| USB | Lightning, USB 2.0 |
| GPS | GPS, GLONASS, GALILEO, QZSS |
| NFC | Yes |
| Radio | No |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No |
| Loudspeaker Test | Voice 71dB / Noise 77dB / Ring 80dB |
Design
| Type | Bar |
|---|---|
| Dimensions | 138.4 x 67.3 x 7.3 mm (5.45 x 2.65 x 0.29 in) |
| Weight | 148 g (5.22 oz) |
| Colors | Silver, Space Gray, Gold, Red |
| Build | Glass front (Corning-made glass), glass back (Corning-made glass), aluminum frame |
Network
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat12 600/150 Mbps, EV-DO Rev.A 3.1 Mbps |
|---|---|
| SIM | Nano-SIM IP67 dust/water resistant (up to 1m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified) |
| 2G Network | GSM 850 / 900 / 1800 / 1900 |
| 3G Network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G Network | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 29, 30, 34, 38, 39, 40, 41, 66 |
