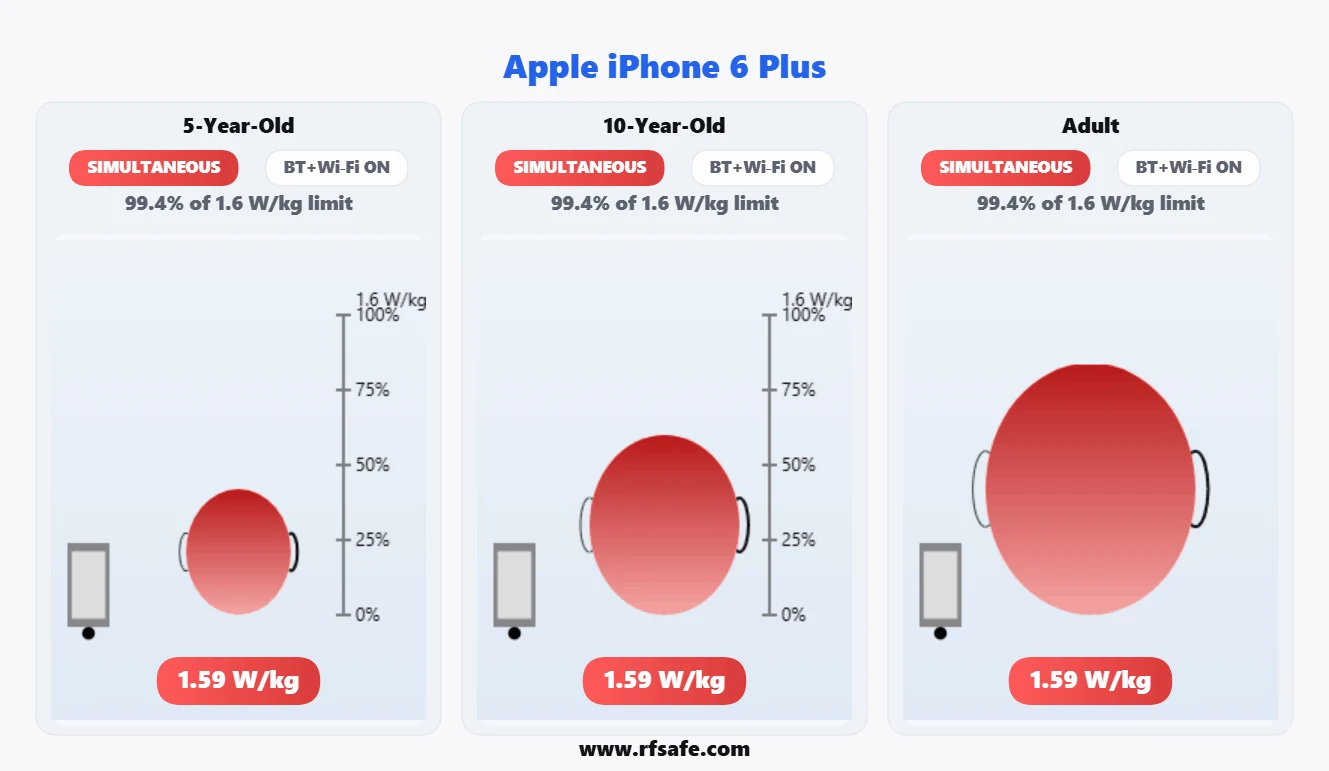

Head exposure reference
Apple · PHONE PROFILE
Apple iPhone 6 Plus
Full specifications. Reported SAR. The context behind your connection.
Display5.5 inches
ChipsetApple A8 (20 nm)
FCC identifierBCGE2817A
RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.
The SAR overview.
Reported US test values · W/kg averaged over 1 g of tissue
Head SAR1.19 W/kg74% of US localized limit
Body SAR1.19 W/kg74% of US localized limit
Simultaneous head1.59 W/kg99% of US localized limit
Simultaneous body1.54 W/kg96% of US localized limit
0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average
Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →
Additional SAR values & source information
| Hotspot (US) | 1.59 W/kg |
|---|---|
| Product-specific use (US) | 1.19 W/kg |
| Head (EU, 10 g) | 0.99 W/kg |
| Body (EU, 10 g) | 0.91 W/kg |
| FCC ID | BCGE2817A — FCC equipment search ↗ |
| Source | RF Safe original phone profile ↗ |
| Data note | Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed. |

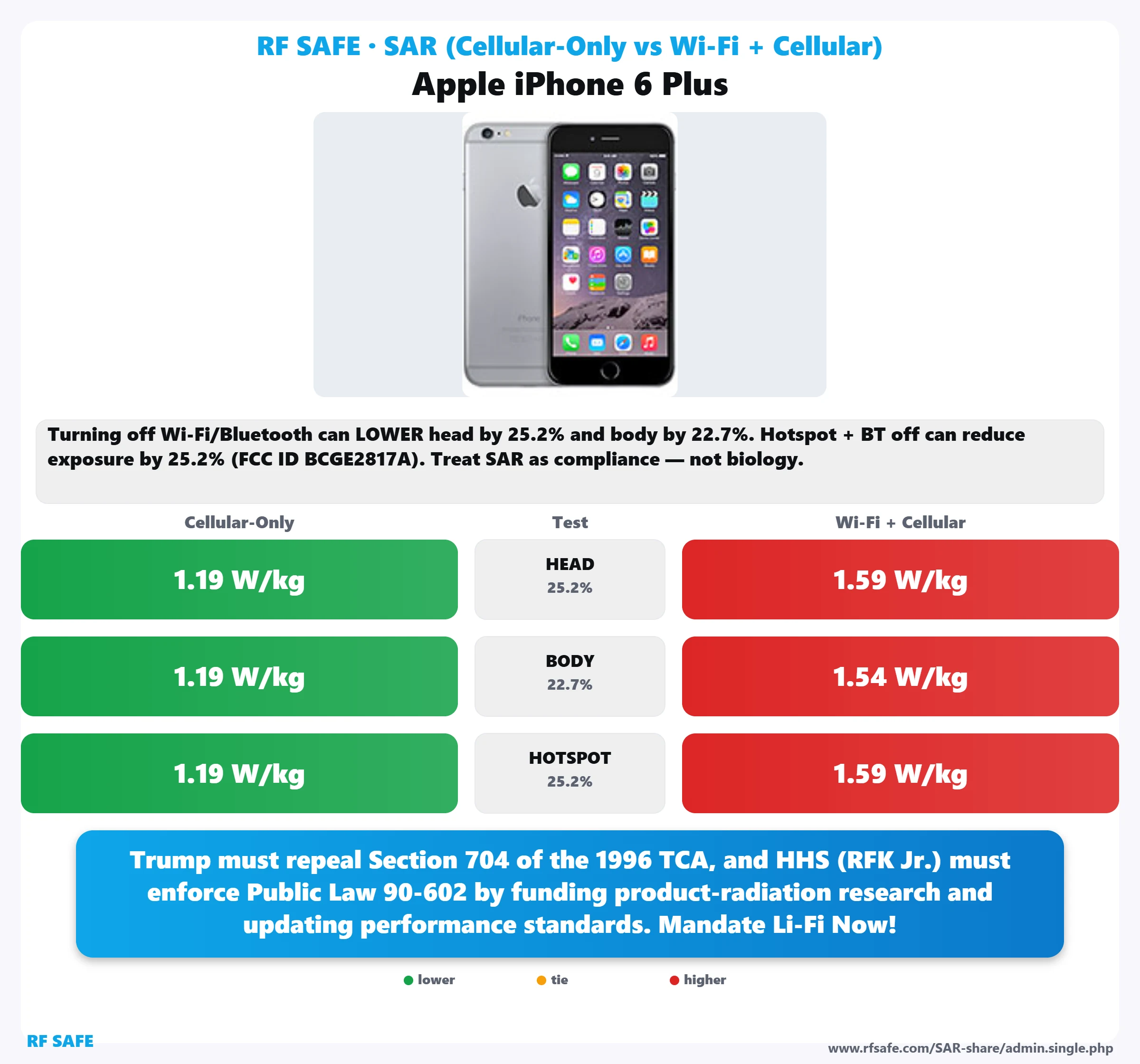

Your SAR comparison, at a glance.
Cellular-only and simultaneous-transmission values, side by side.
RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.
Two views. One clearer picture.
RF Safe reference illustrations for this phone.

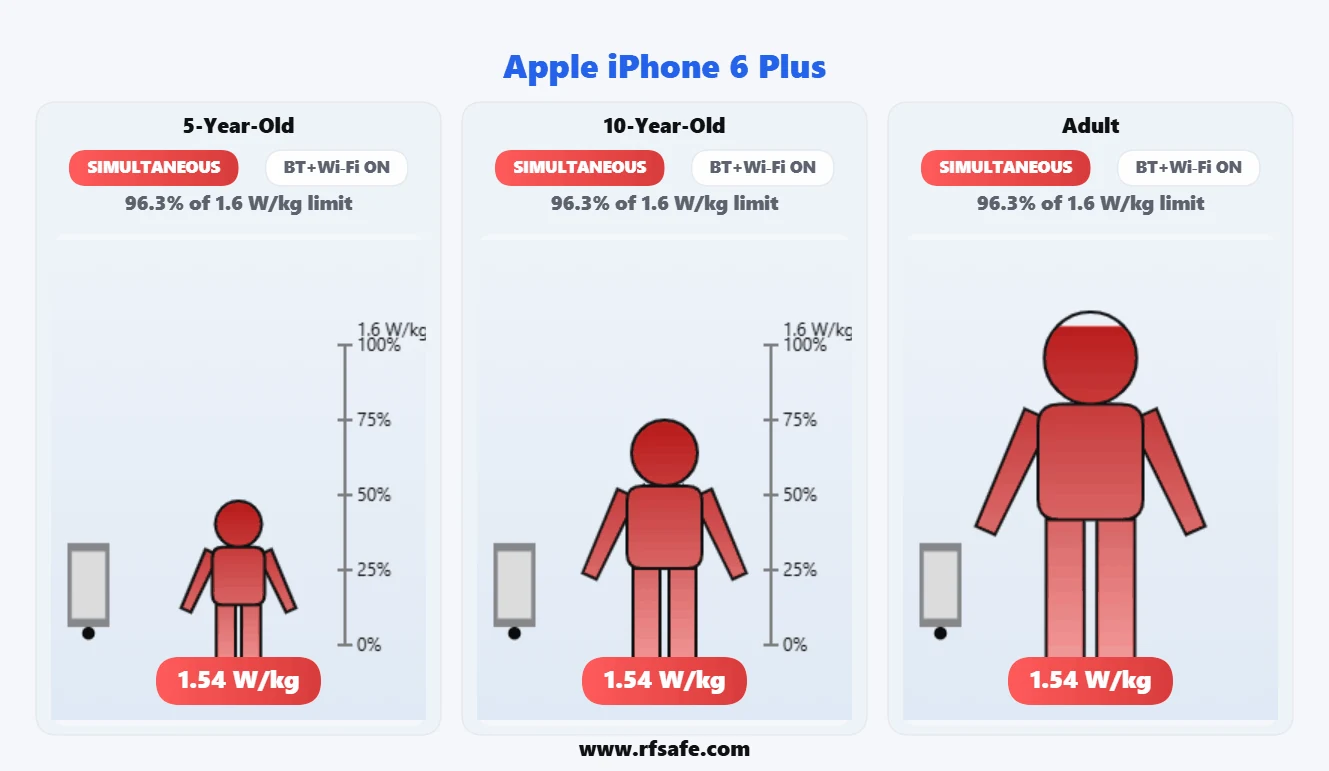

Body exposure reference
Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.
Every specification, in one place.
Historical RF Safe reference data. Software, pricing, and availability may have changed.
General
| Phone | Apple iPhone 6 Plus |
|---|---|
| Technology | GSM / CDMA / HSPA / EVDO / LTE |
| Announced | 2014, September 09. Released 2014, September 19 |
| Availability (source snapshot) | Discontinued |
| Price (historical source) | About 420 EUR |
| Model Names | A1522, A1524, iPhone7,1 |
Display
| Type | IPS LCD |
|---|---|
| Size | 5.5 inches, 83.4 cm2 (~67.8% screen-to-body ratio) |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~401 ppi density) |
| Protection | Ion-strengthened glass, oleophobic coating |
| Features | Shatter proof glass, oleophobic coating - Display Zoom |
| Display Test | Contrast ratio: 1361 (nominal), 3.023 (sunlight) |
Camera
| Main Camera | Single Camera: 8 MP, f/2.2, 29mm (standard), 1/3", 1.5m, PDAF, OIS |
|---|---|
| Main Features | Dual-LED dual-tone flash, HDR |
| Video | 1080p@60fps, 720p@240fps |
| Selfie Camera | Single Camera: 1.2 MP, f/2.2, 31mm (standard) |
| Selfie Camera Features | face detection, HDR, FaceTime over Wi-Fi or Cellular |
| Selfie Camera Video | 720p@30fps |
Battery
| Type | Li-Po 2915 mAh, non-removable (11.1 Wh) |
|---|---|
| Battery Test | Endurance rating 79h |
Hardware
| Operating system (source snapshot) | iOS 8, upgradable to iOS 12.5.6 |
|---|---|
| Chipset | Apple A8 (20 nm) |
| CPU | Dual-core 1.4 GHz Typhoon (ARM v8-based) |
| GPU | PowerVR GX6450 (quad-core graphics) |
| Internal Storage | 16GB 1GB RAM, 64GB 1GB RAM, 128GB 1GB RAM |
| Card Slot | No |
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer |
Connectivity
| Wi-fi | Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot |
|---|---|
| Bluetooth | 4.0, A2DP, LE |
| USB | Lightning, USB 2.0 |
| GPS | GPS, GLONASS |
| NFC | Yes (Apple Pay only) |
| Radio | No |
Sound
| Loudspeaker | Yes |
|---|---|
| 3.5mm Jack | Yes |
| Loudspeaker Test | Voice 67dB / Noise 65dB / Ring 66dB |
Design
| Type | Bar |
|---|---|
| Dimensions | 158.1 x 77.8 x 7.1 mm (6.22 x 3.06 x 0.28 in) |
| Weight | 172 g (6.07 oz) |
| Colors | Space Gray, Silver, Gold |
| Build | Glass front (Corning-made glass), aluminum back, aluminum frame |
Network
| Speed | HSPA 42.2/5.76 Mbps, LTE-A Cat4 150/50 Mbps, EV-DO Rev.A 3.1 Mbps |
|---|---|
| SIM | Nano-SIM Apple Pay (Visa, MasterCard, AMEX certified) |
| 2G Network | GSM 850 / 900 / 1800 / 1900 - A1522 (GSM), A1522 (CDMA), A1524 CDMA 800 / 1700 / 1900 / 2100 - A1522 (CDMA), A1524 |
| 3G Network | HSDPA 850 / 900 / 1700 / 1900 / 2100 - A1522 (GSM), A1522 (CDMA), A1524 CDMA2000 1xEV-DO - A1522 (CDMA), A1524 TD-SCDMA - A1524 |
| 4G Network | 1, 2, 3, 4, 5, 7, 8, 13, 17, 18, 19, 20, 25, 26, 28, 29 - A1522 GSM, A1522 CDMA 1, 2, 3, 4, 5, 7, 8, 13, 17, 18, 19, 20, 25, 26, 28, 29, 38, 39, 40, 41 - A1524 |
