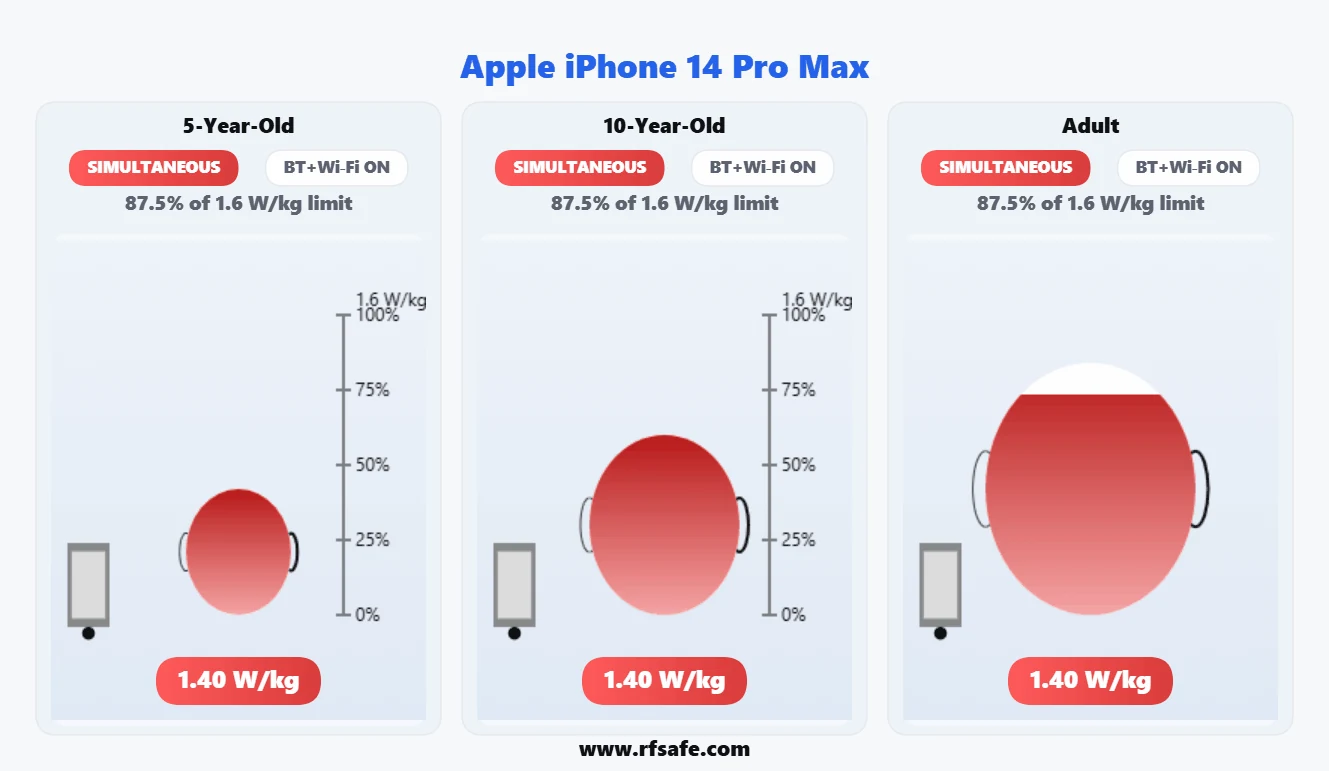

Head exposure reference
Apple · PHONE PROFILE
Apple iPhone 14 Pro Max
Full specifications. Reported SAR. The context behind your connection.
Display6.7 inches
ChipsetApple A16 Bionic (4 nm)
FCC identifierBCG-E8141A
RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.
The SAR overview.
Reported US test values · W/kg averaged over 1 g of tissue
Head SAR1.15 W/kg72% of US localized limit
Body SAR1.07 W/kg67% of US localized limit
Simultaneous head1.40 W/kg87% of US localized limit
Simultaneous body1.46 W/kg91% of US localized limit
0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average
Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →
Additional SAR values & source information
| Hotspot (US) | 1.50 W/kg |
|---|---|
| Product-specific use (US) | 1.03 W/kg |
| Head (EU, 10 g) | 0.99 W/kg |
| Body (EU, 10 g) | 0.98 W/kg |
| FCC ID | BCG-E8141A — FCC equipment search ↗ |
| Source | RF Safe original phone profile ↗ |
| Data note | Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed. |

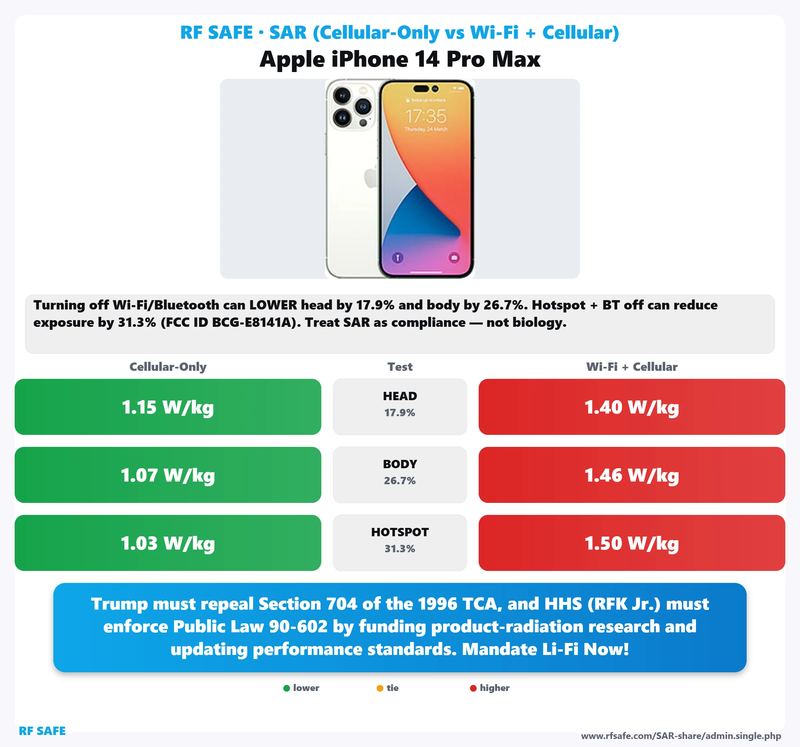

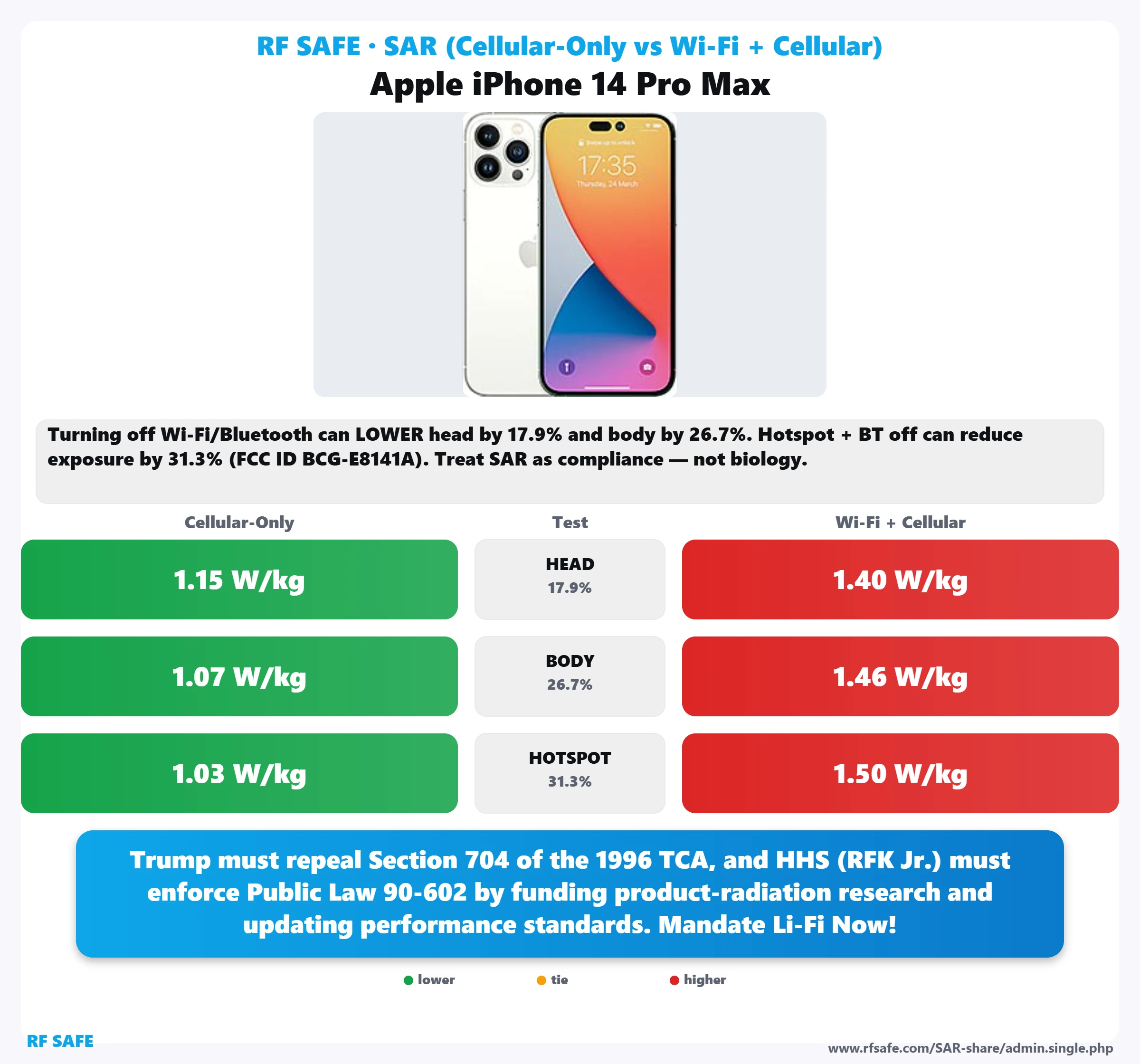

Your SAR comparison, at a glance.
Cellular-only and simultaneous-transmission values, side by side.
RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.
Two views. One clearer picture.
RF Safe reference illustrations for this phone.

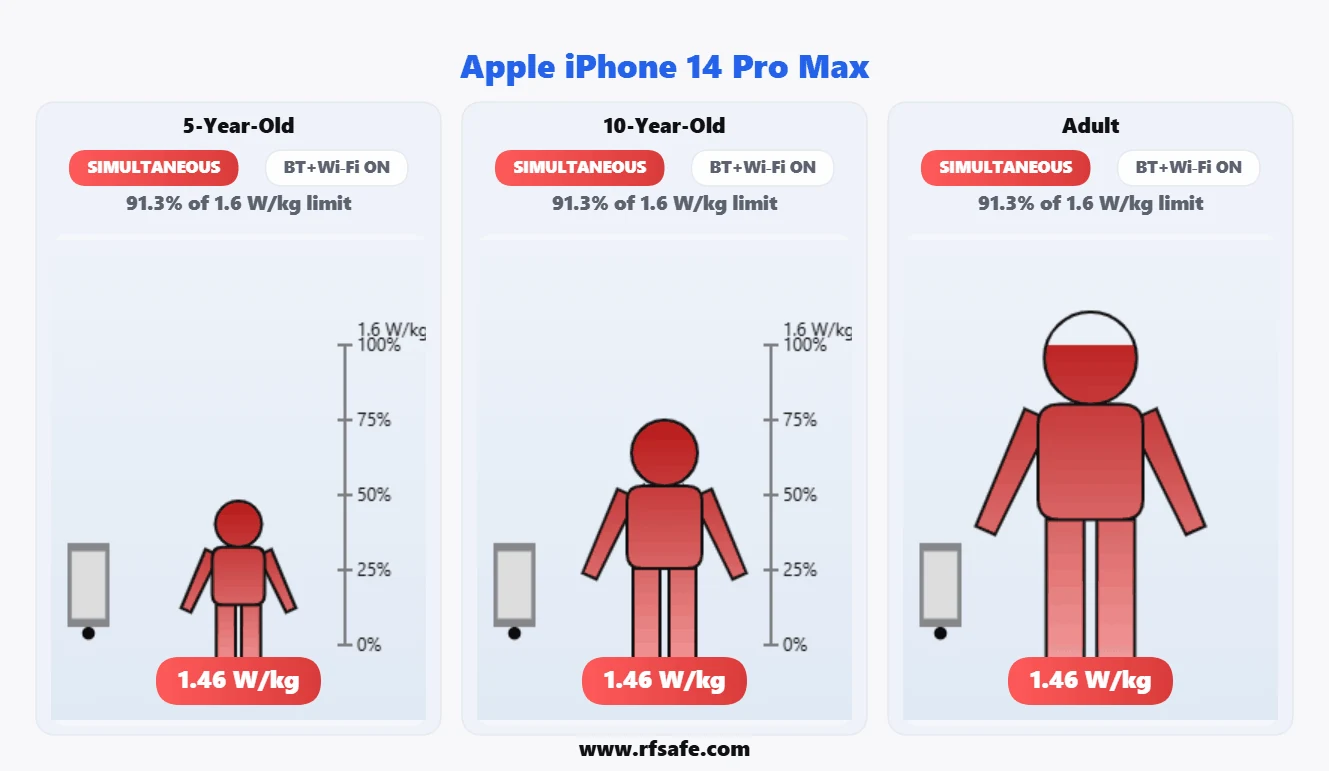

Body exposure reference
Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.
Every specification, in one place.
Historical RF Safe reference data. Software, pricing, and availability may have changed.
General
| Phone | Apple iPhone 14 Pro Max |
|---|---|
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| Announced | 2022-09-07 22:16:08 |
| Availability (source snapshot) | Available |
| Price (historical source) | ₹ 127,999 / $ 1,049.99 / £ 1,129.99 / € 1,249.00 |
| Model Names | A2894, A2651, A2893, A2895, iphone15,3 |
Display
| Type | LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM) |
|---|---|
| Size | 6.7 inches, 110.2 cm2 (~88.3% screen-to-body ratio) |
| Resolution | 1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density) |
| Protection | Ceramic Shield glass |
| Features | Always-On display |
| Display Test | Contrast ratio: Infinite (nominal) |
Camera
| Main Camera | Triple Camera: 48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22m, dual pixel PDAF, sensor-shift OIS 12 MP, f/2.8, 77mm (telephoto), 1/3.5", PDAF, OIS, 3x optical zoom 12 MP, f/2.2, 13mm, 120 (ultrawide), 1/2.55", 1.4m, dual pixel PDAF TOF 3D LiDAR scanner (depth) |
|---|---|
| Main Features | Dual-LED dual-tone flash, HDR (photo/panorama) |
| Video | 4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Cinematic mode (4K@24/30fps), stereo sound rec. |
| Selfie Camera | Single Camera: 12 MP, f/1.9, 23mm (wide), 1/3.6", PDAF, OIS (unconfirmed) SL 3D, (depth/biometrics sensor) |
| Selfie Camera Features | HDR, Cinematic mode (4K@24/30fps) |
| Selfie Camera Video | 4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS |
Battery
| Type | Li-Ion 4323 mAh, non-removable (16.68 Wh) |
|---|---|
| Battery Test | Endurance rating 121h |
| Charging | Wired, PD2.0, 50% in 30 min (advertised) 15W wireless (MagSafe) 7.5W wireless (Qi) |
Hardware
| Operating system (source snapshot) | iOS 16, upgradable to iOS 16.3 |
|---|---|
| Chipset | Apple A16 Bionic (4 nm) |
| CPU | Hexa-core (2x3.46 GHz Everest + 4x2.02 GHz Sawtooth) |
| GPU | Apple GPU (5-core graphics) |
| Performance | AnTuTu: 955884 (v9) GeekBench: 5423 (v5.1) GFXBench: 54fps (ES 3.1 onscreen) |
| Internal Storage | 128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM, 1TB 6GB RAM NVMe |
| Card Slot | No |
| Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer Ultra Wideband (UWB) support Emergency SOS via satellite (SMS sending/receiving) |
Connectivity
| Wi-fi | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot |
|---|---|
| Bluetooth | 5.3, A2DP, LE |
| USB | Lightning, USB 2.0 |
| GPS | GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS |
| NFC | Yes |
| Radio | No |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No |
| Loudspeaker Test | -24.3 LUFS (Very good) |
Design
| Type | Bar |
|---|---|
| Dimensions | 160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in) |
| Weight | 240 g (8.47 oz) |
| Colors | Space Black, Silver, Gold, Deep Purple |
| Build | Glass front (Corning-made glass), glass back (Corning-made glass), stainless steel frame |
Network
| Speed | HSPA, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps |
|---|---|
| SIM | Nano-SIM and eSIM - International Dual eSIM with multiple numbers - USA Dual SIM (Nano-SIM, dual stand-by) - China IP68 dust/water resistant (up to 6m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified) |
| 2G Network | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM) CDMA 800 / 1900 |
| 3G Network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO |
| 4G Network | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2894, A2896 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A2651, A2893 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2895 |
| 5G Network | 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2894, A2896 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A2651 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79 SA/NSA/Sub6 - A2893 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2895 |
